VDF
Capacity : up to 3500m3/h VRF-D
Capacity : up to 2500m3/h VRF
Capacity : up to 1000m3/h
VRW
Capacity : up to 1000m3/h VNF
Capacity : up to 1000m3/h STN
Capacity : up to 650m3/h SFN
Technical data is the same as STN Type.
Mutistage pumps VKR
Capacity : up to 35m3/h VKO
This pump smaller than the VKR type Oil pump KF
Three spindle screw pump KV
Technical data are same as KF type. Other pumps Rotary lobe pump
Capacity : 5~200m3/h Piston pump
Available in fresh or sea water execution Eccentric helical rotor pump
Capacity : up to 50m3/h
Air ejectors AELD
Mounting on the pump AELE
Mounting on the pump AELC
Mounting on the suction pipe AELG
Mounting on the suction pipe
Electric liquid ring vacuum pumps ASED
An electric driven vacuum pump ASGB
An high power electric driven vacuum pump
Oil pump

KF type

Three spindle screw pump for vertical or horizontal mounting
KF

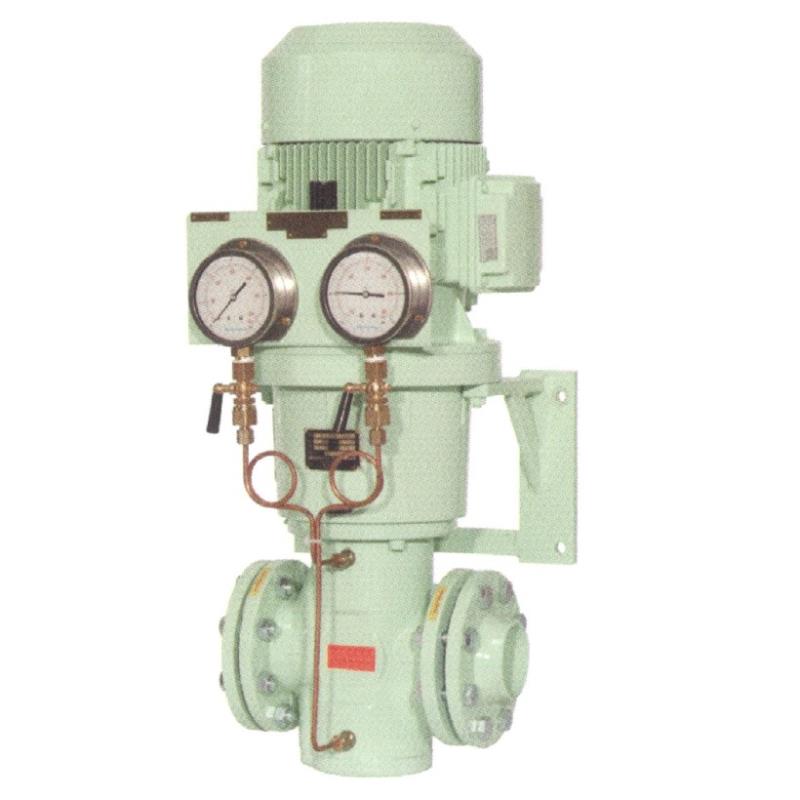

KF 160 with pressure gauges

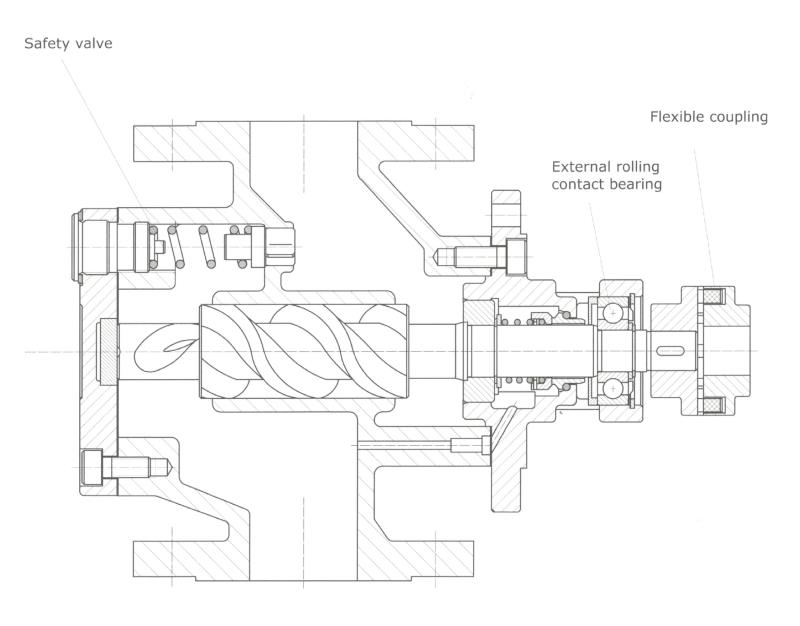

KF Drawing
KF drawing

Technical Data

Technical Information
Capacity up to 150m3/h
Head up to 16bar
Nominal Diameter DN 20 - DN 150
Materials
Casing Nodular Cast Iron
GGG-40
Impeller Nitrated Steel
1.7139
Shaft Sealing Mechanical Seal

Advantage

  • Two rolling contact bearings, grease lubricated, not in contact with the liquid
  • Flexible coupling
  • Vertical or horizontal installation possible
  • One design for sizes from DN 20 - DN 150
  • Built in safty valve
