VDF
Capacity : up to 3500m3/h VRF-D
Capacity : up to 2500m3/h VRF
Capacity : up to 1000m3/h
VRW
Capacity : up to 1000m3/h VNF
Capacity : up to 1000m3/h STN
Capacity : up to 650m3/h SFN
Technical data is the same as STN Type.
Mutistage pumps VKR
Capacity : up to 35m3/h VKO
This pump smaller than the VKR type Oil pump KF
Three spindle screw pump KV
Technical data are same as KF type. Other pumps Rotary lobe pump
Capacity : 5~200m3/h Piston pump
Available in fresh or sea water execution Eccentric helical rotor pump
Capacity : up to 50m3/h
Air ejectors AELD
Mounting on the pump AELE
Mounting on the pump AELC
Mounting on the suction pipe AELG
Mounting on the suction pipe
Electric liquid ring vacuum pumps ASED
An electric driven vacuum pump ASGB
An high power electric driven vacuum pump
Centrifugal pump

STN type

Horizontal non self-priming centrifugal pump with flexible coupling
STN
STN 80 G with pressure gauges

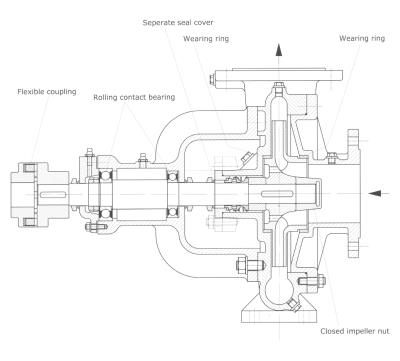

STN Drawing
STN drawing

Technical Data

Technical Information
Capacity up to 650m3/h
Head up to 9bar
Nominal Diameter DN 40 - DN 250
Materials
Casing Cast Iron
GG-25
 Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
Impeller Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
 Duplex Stainless Steel
1.4468
Shaft Stainless Steel
1.4404
 Duplex Stainless Steel
1.4462
Shaft Sealing Mechanical Seal Stuffing box packing

Advantage

  • Two rolling contact bearings, grease or lifetime lubricated, not in contact with the liquid
  • Flexible coupling
  • Several options for materials and priming systems
