Centrifugal pump

VNF type

Vertical non self-priming centrifugal pump with flexible spacer coupling
VNF

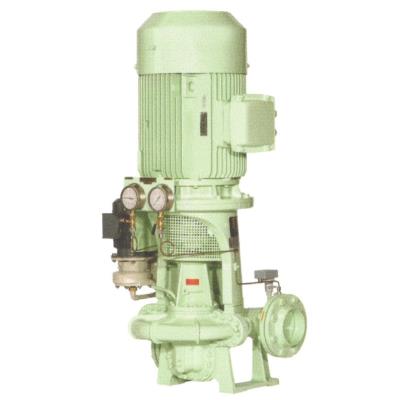

VNF 5/350 G with pressure gauges

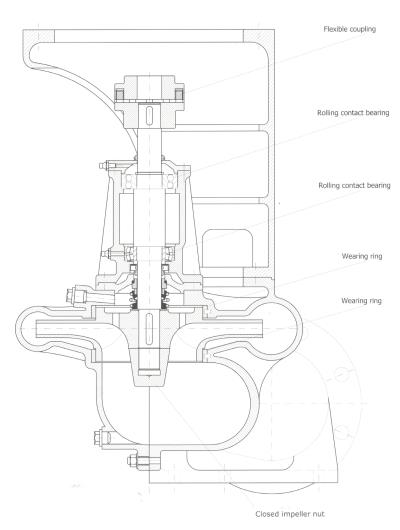

VNF Drawing
VNF drawing

The pump is in axial inlet design with suction and delivery flange same size. The direction of the inspection opening can be choosen by every 30°

Technical Data

Technical Information
Capacity up to 1000m3/h
Head up to 14bar
Nominal Diameter DN 80 - DN 300
Materials
Casing Cast Iron
GG-25
 Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
Impeller Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
 Duplex Stainless Steel
1.4468
Shaft Stainless Steel
1.4404
 Duplex Stainless Steel
1.4462
Shaft Sealing Mechanical Seal Stuffing box packing

Advantage

  • Two rolling contact bearings, grease or lifetime lubricated, not in contact with the liquid
  • Flexible coupling
  • Low height
  • Maintenance without removing e-motoror pipes
  • Stiff and vibration damping cast iron design for motor support and bearing stool
  • Several options for materials and priming systems
