Centrifugal pump

VRF-D type

Double suction, vertical non self-priming centrifugal pump with flexible spacer coupling
VRF-D

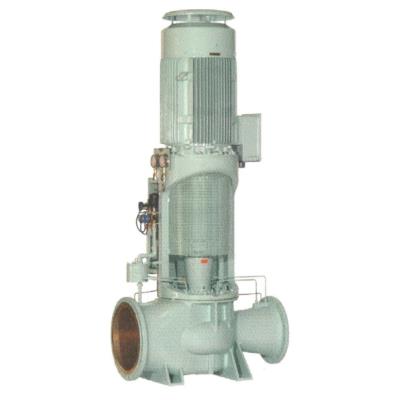

VRF 11/420 DG with pressure gauges and priming unit

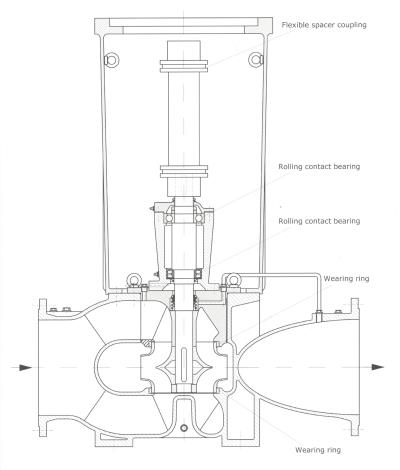

VRF-D Drawing
VRF-D drawing

The pump is in-line design with suction and delivery flange same level. The direction of the inspection opening can be choosen by every 30°

Technical Data

Technical Information
Capacity up to 2500m3/h
Head up to 3.5bar
Nominal Diameter DN 350 - DN 500
Materials
Casing Cast Iron
GG-25
 Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
Impeller Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
 Duplex Stainless Steel
1.4468
Shaft Stainless Steel
1.4404
 Duplex Stainless Steel
1.4462
Shaft Sealing Mechanical Seal Stuffing box packing

Advantage

  • Two rolling contact bearings, grease lubricated, not in contact with the liquid
  • Flexible spacer coupling
  • Maintenance without removing e-motoror pipes
  • Stiff and vibration damping cast iron design for motor support and bearing stool
  • Several options for materials, shaft sealing and self-priming systems
