Centrifugal pump

VRW type

Vertical non self-priming centrifugal pump with flexible spacer coupling
VRW

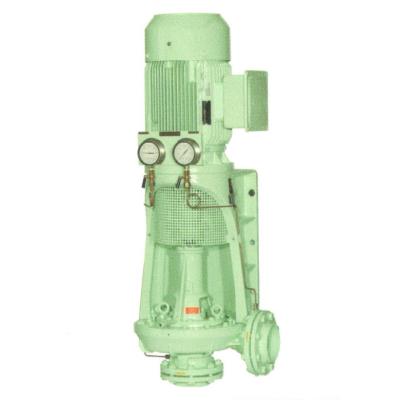

VRW 5/350 G with pressure gauges

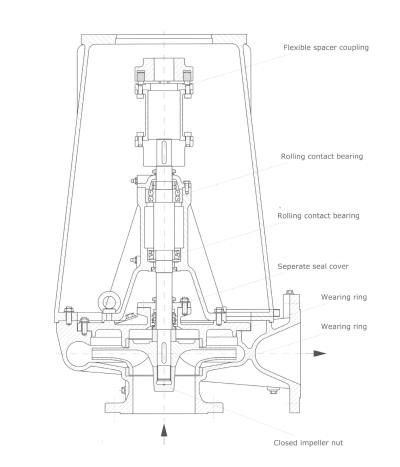

VRW Drawing
VRW drawing

The pump is in axial inlet design with suction and delivery flange same size. The direction of the inspection opening can be choosen by every 30°

Technical Data

Technical Information
Capacity up to 1000m3/h
Head up to 14bar
Nominal Diameter DN 125 - DN 300
Materials
Casing Cast Iron
GG-25
 Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
Impeller Bronze
G-CuSn10
 Aluminium Bronze
G-CuAl10Ni
 Duplex Stainless Steel
1.4468
Shaft Stainless Steel
1.4404
 Duplex Stainless Steel
1.4462
Shaft Sealing Mechanical Seal Stuffing box packing

Advantage

  • Two rolling contact bearings, grease lubricated, not in contact with the liquid
  • Flexible spacer coupling
  • Maintenance without removing e-motoror pipes
  • Stiff and vibration damping cast iron design for motor support and bearing stool
  • Several options for materials, shaft sealing and priming systems
